How a Welding Machine Works: A Complete Guide to the World of Welding

21 July, 2025

In industries, construction, and workshops, the presence of welding machines is indispensable. Welding is not just about joining two metals; it is the backbone of various structures and equipment that we use daily. This article will comprehensively discuss how a welding machine works, its important components, types, and common welding techniques. One of the featured products is the Matari MA-300D DC Welder, a high-performance welding solution.

Introduction to the World of Welding

What is Welding?

Welding is the process of joining two materials, typically metals, by melting the surfaces of the parts and adding filler metal. This process results in a strong and durable joint.

The Importance of Welding in Industry

Welding is used across diverse sectors including shipbuilding, automotive, infrastructure, and heavy equipment manufacturing, such as steel bridge construction, vehicle frames, and oil pipelines.

Main Components of a DC Welding Machine

A DC welding machine operates through the combination of several key components, including:

Mechanical Power Source: It utilizes the rotation of coils within a magnetic field to generate electric current in the DC welder. For example, the Matari MA-300D has a power rating of 10 KW and voltage of 220 V, producing a stable welding current of up to 300A.
Rotation of Coils in the Magnetic Field: The DC welding dynamo has coils (rotor) that rotate inside a magnetic field (stator).
Electromagnetic Induction: When the coil rotates, a relative movement between the coil and the magnetic field induces an electromotive force (EMF) in the coil.
Direct Current: The induced EMF generates direct current. The commutator (split ring) on the rotor ensures that the current leaving the dynamo is always direct current, regardless of the coil’s rotation direction.
Current Regulation: DC welding machines generally include a current control that allows the user to adjust the current amplitude according to the welding requirements.
Electric Arc: The direct current from the welding dynamo is carried via the electrode and the workpiece. An electric arc forms between the electrode and the workpiece due to the potential difference. The heat generated by the arc melts the metal, enabling the welding process.

Types of Welding Machines

Different welding applications require different machine types:

SMAW (Stick Welding): The most common and easy to use, suitable for open field use. Available at Karya Logistik as BX1-300 AC Welder, BX1-500 AC Welder, and 300D DC Welder.
MIG Welding (Metal Inert Gas): Uses filler wire and shielding gas, provides clean and fast welds. Available as MIG 270F at Karya Logistik.
TIG Welding (Tungsten Inert Gas): High precision, used for thin metals or precise welding such as stainless steel.
Plasma Welding: Produces very high temperatures and precise metal cutting.

Welding Machine Operation Process

The operation of a welding machine involves the following technical steps:

Adjusting Current and Voltage: The operator sets the welding current according to the metal’s thickness and type. Matari MA-300D can be adjusted from 125 to 300 A.
Arc Ignition: Occurs when the electrode touches the metal and creates a very hot electric arc.
Melting the Base and Filler Metals: The arc melts the base metal and filler metal, forming a molten weld pool.
Joint Formation and Cooling: After the arc is stopped, the molten metal cools and bonds to form a permanent joint.

Welding Techniques and Positions

In practice, welding is not only about the machine but also skill:

Positions 1G to 6G: Indicate the direction and position of welding relative to gravity. 6G is the most challenging because it involves welding a pipe at a specific angle.
Weaving and Stringer Bead Techniques: Weaving is a cross-motion used for wide welds, while stringer bead is for narrow and deep welds.

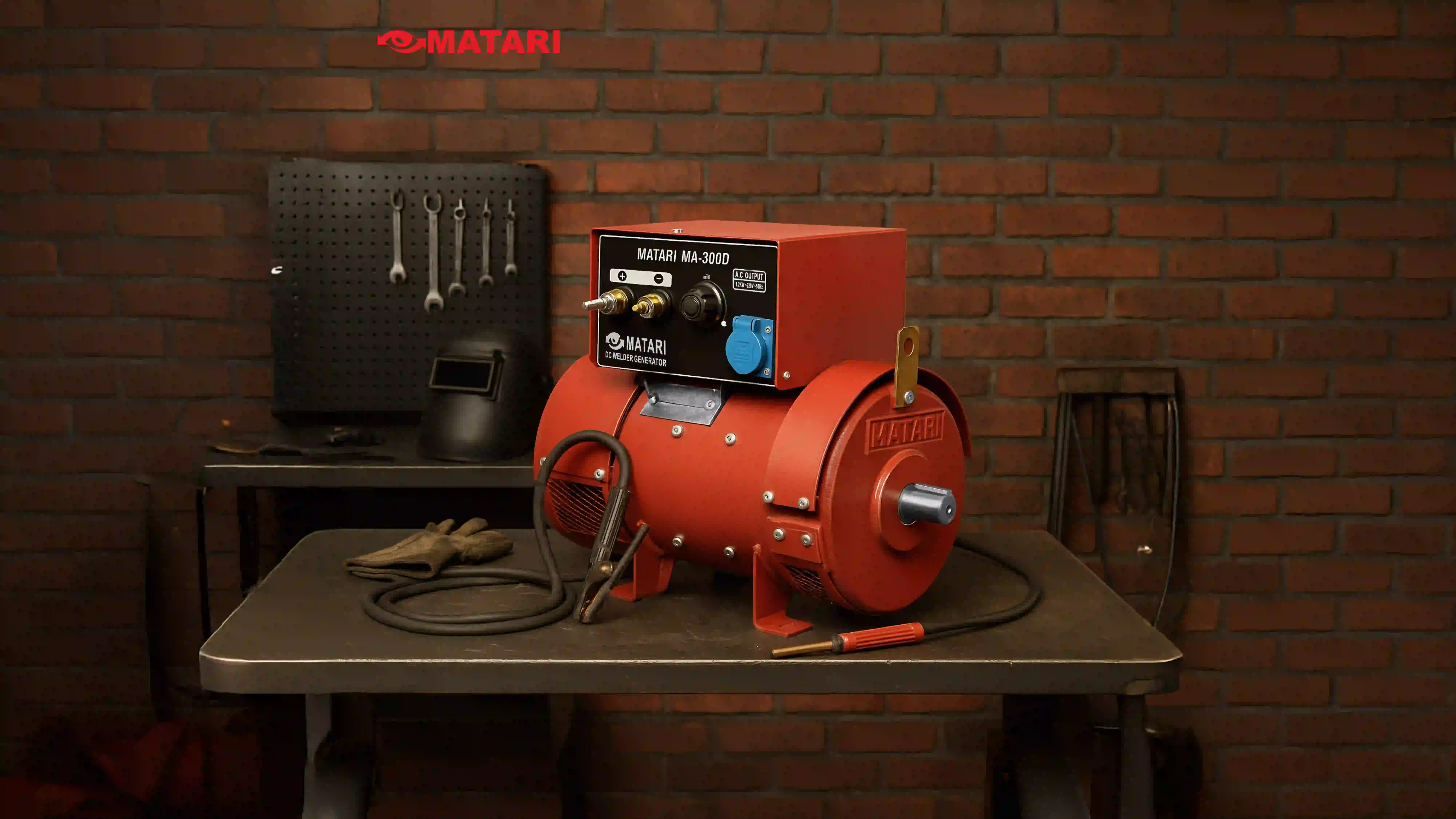

Product Recommendation: Matari MA-300D DC Welder

If you’re looking for a high-performance welding machine, the Matari MA-300D is the right choice. Designed with power up to 300 A, this machine features:

Power: 10 KW
Voltage: 220 V
Speed: 3000 rpm
Weight: 102 kg
Electrode size: 3.2 – 6 mm
Dimensions: 67 x 40 x 58 cm

With a maximum AC output of 1.2 KW, this machine is suitable for medium to heavy industries, offering the current stability essential for neat and strong welds.

Conclusion

Welding machines are the backbone in many industrial sectors. From the electrical system, electric arc, to welding techniques, everything works in harmony to create strong metal joints. One recommended flagship product is the Matari MA-300D DC Welder, the best solution for professional welding results.

Want to get a quality welding machine like the Matari MA-300D? Contact your nearest authorized Karya Logistik dealer for price and product availability information.
