Working Principle of Gear Pumps: A Complete Explanation for Beginners

Gear pumps are one of the most commonly used types of pumps in industry, especially for transferring viscous fluids such as oil, fuel, or chemical liquids. With a simple yet efficient design, gear pumps are suitable for a wide range of applications.

What is a Gear Pump? Definition and History

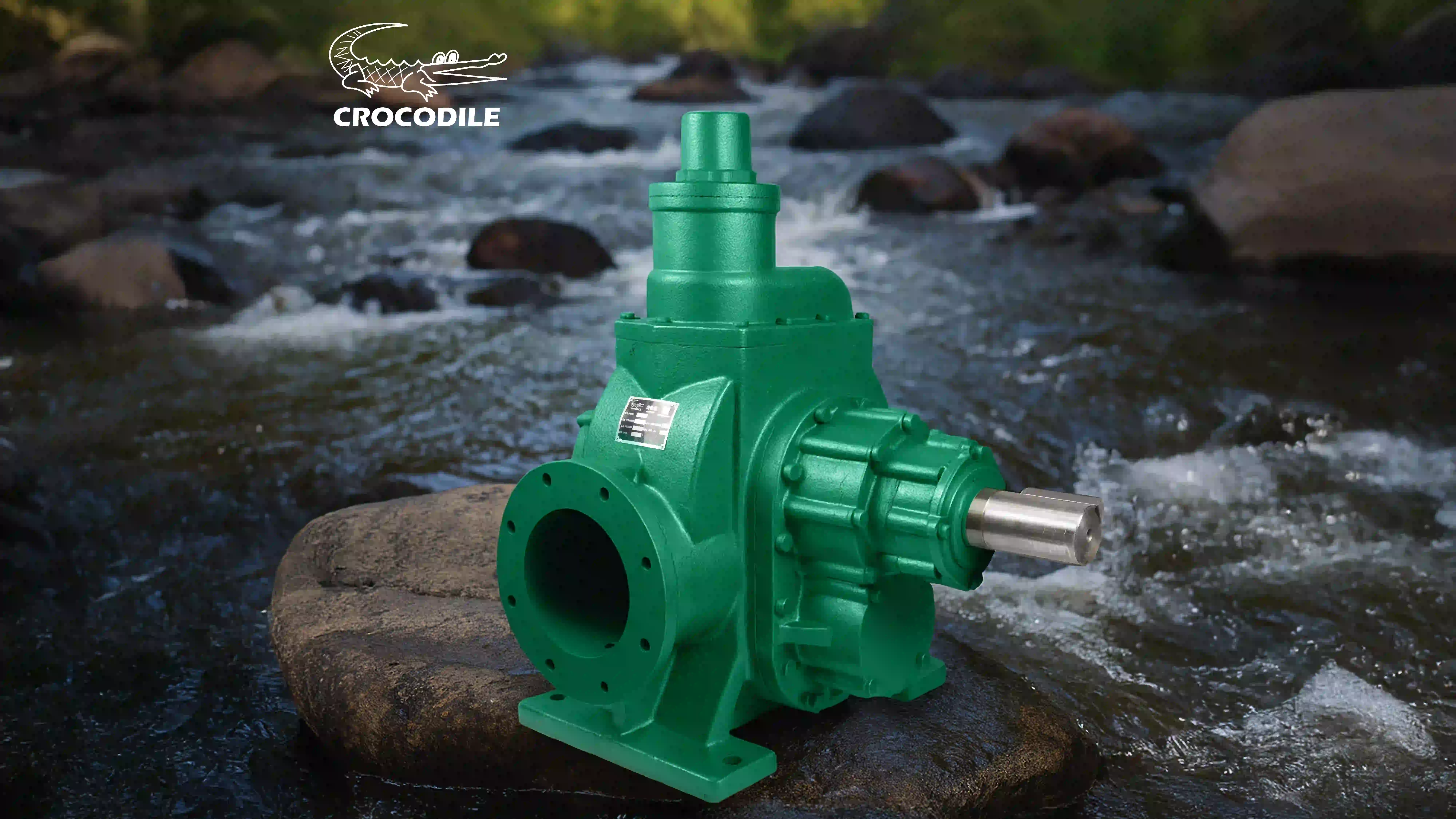

A gear pump is a type of positive displacement pump that uses a pair of gears to move fluid from one place to another. This pump was first used in the early 20th century and has continuously undergone technological improvements to increase efficiency and durability. One notable product example is the Crocodile KCB-5400 10” Gear Pump from the KCB Series.

Main Components of a Gear Pump

• Gears
  The main component of a gear pump is the gears, consisting of two gears: the driving gear and the driven gear. Both rotate to draw in and push the fluid.

• Casing and Housing
  The casing in a gear pump functions to withstand pressure and maintain the precise position of the gears. The design of the casing significantly affects the pump’s efficiency and performance.

• Shaft and Bearings
  The shaft connects the motor to the gears, while the bearings ensure smooth rotation with minimal friction.

• Seals and Gaskets
  Seals and gaskets prevent fluid leakage during pumping and protect the internal parts of the pump from contamination.

Types of Gear Pumps

• External Gear Pump
  This type has two external gears that mesh together. Fluid enters between the gear teeth and is pushed toward the outlet. External gear pumps are commonly used in the automotive and lubrication industries.

• Internal Gear Pump
  An internal gear pump consists of one gear inside another. This design is suitable for viscous fluids and operates more quietly.

• Comparison of Both Types
  External gear pumps excel at high-pressure applications, while internal gear pumps are better suited for high-viscosity fluids. The choice depends on specific operational needs.

Working Principle of a Gear Pump

• Fluid Intake Process
  In a gear pump, fluid enters the space between the gear teeth as the gears start to rotate. This creates a vacuum that draws fluid in.

• Fluid Transfer Process
  The fluid is carried by the rotation of the gears toward the outlet side. This movement occurs without compression, maintaining the integrity of the fluid.

• Fluid Discharge Process
  Once the fluid reaches the outlet side, the meshing gears push the fluid out through the outlet with consistent pressure.

Advantages and Disadvantages of Gear Pumps

• Advantages of Gear Pump

Gear pumps have a simple design, compact size, and are easy to maintain. Products like the Crocodile Gear Pump KCB 5400 are also known for durability and are suitable for heavy-duty use.

• Disadvantages of Gear Pump

These pumps are less suitable for fluids containing solid particles due to the narrow clearance between components. Additionally, gear wear over time can cause internal leakage.

Conclusion

Gear pumps are a reliable solution for transferring viscous fluids at stable pressures. By understanding their working principle and components, you can select the best type and model, such as the Crocodile KCB-5400 10” Gear Pump from Karya Logistik. Make sure to purchase from an authorized dealer to get genuine products, warranty, and professional technical support.
