Optimization of Volute Pumps for Slurry in Small Dam Projects

The Role of Pumping Systems in Dam Construction

Water pump machines are essential components in various construction projects, especially in small-scale dam construction. The processes of water control, flow diversion, and slurry transfer require equipment capable of performing reliably under dynamic field conditions. Slurry, a mixture of water and solid materials such as sand, mud, and gravel, often presents challenges due to its abrasive nature. Because of this, volute pumps offer an efficient and reliable solution. Their large impeller design and wide pump casing make this type of pump more adaptable to slurry materials without easily clogging.

Understanding Volute Pumps and How They Work

Volute-type water pumps are designed with a circular structure that produces a stable flow thanks to centrifugal force. Compared to direct impeller pumps with narrow passages, volute pumps have a wider flow path, making them more tolerant of large particles in slurry. They have high flow capacity and can maintain sufficient pressure to move materials to discharge channels or sedimentation ponds.

This technical advantage makes volute pumps the ideal choice for construction projects requiring continuous large volume transfer. Additionally, their efficiency in maintaining flow rates makes them an economical solution for sediment management in the field.

Applications of Volute Pumps in Small Dam Projects

Water pump machines play a role in moving slurry from excavations to sedimentation ponds, maintaining work area stability, and reducing pooling risks that hinder construction progress. In small dam projects, volute pumps are integrated with guiding channels, sedimentation ponds, and preliminary filtration systems to maximize material transfer functions.

With the right system, volute pumps can operate consistently even as solid materials continuously enter with water. Work efficiency increases, and project timelines are more controlled, especially during increased sediment volumes caused by rainfall or excavation processes.

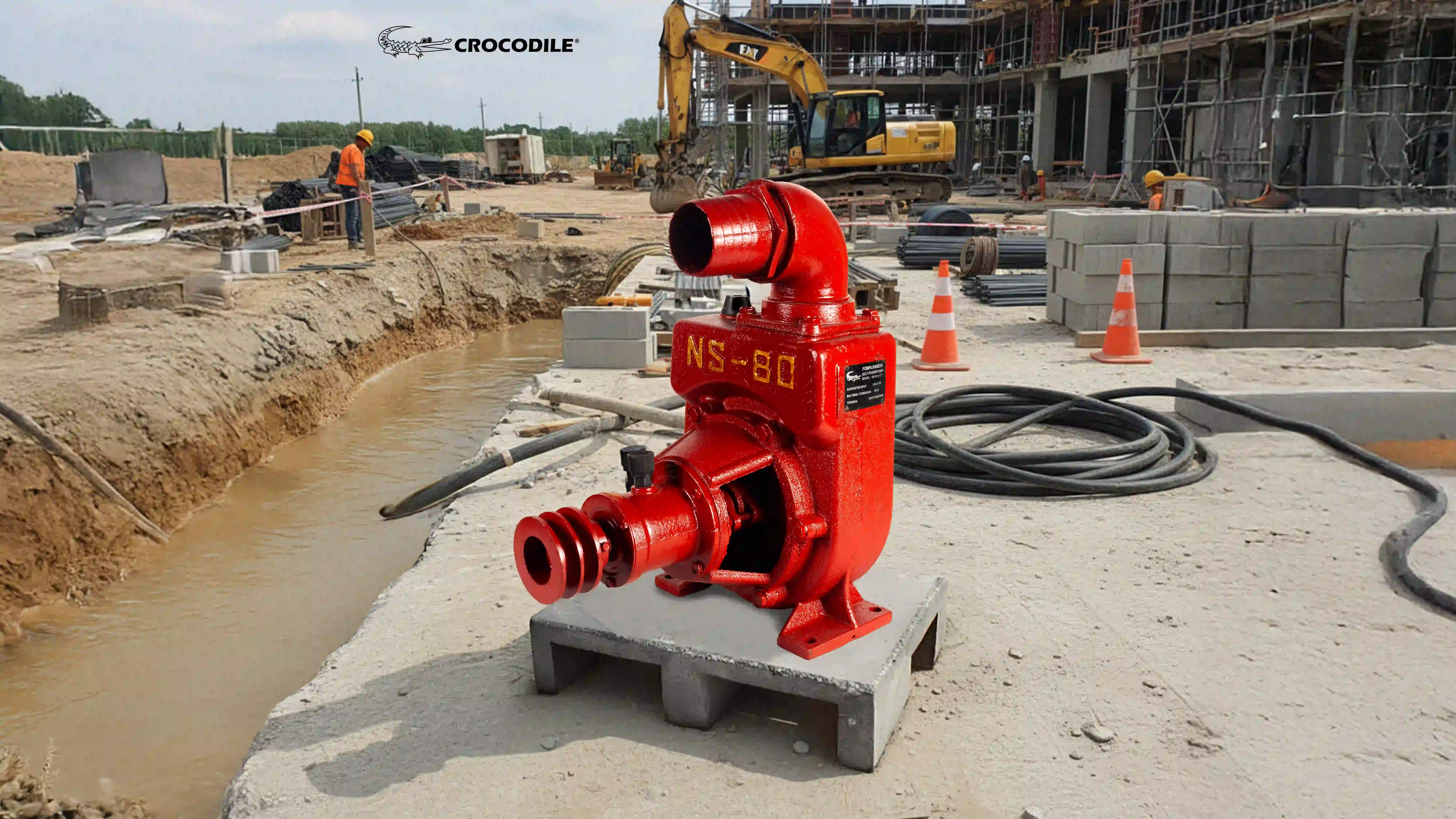

The Crocodile NS-80 3 Inch Volute Pump as a Solution

The Crocodile NS-80 3 Inch Pump is widely used in small to medium projects. Made from cast iron, this pump is sturdy and stable under heavy-duty conditions. With a 3-inch diameter inlet and outlet, the NS-80 can deliver up to 2433 liters per minute with a head reaching 42 meters.

Its adjustable pulley system allows operators to set the speed according to slurry weight and required flow rate. Weighing 32 kg and featuring a compact size, it is easy to move or position in limited workspaces. This pump also excels in moving water from irrigation ponds, plantations, fish ponds, rice fields, shrimp farms, and construction sites with varying viscosity needs.

Technical and Operational Factors in Using Volute Pumps

Water pumps must be selected based on flow capacity, material viscosity, and job site characteristics. For slurry containing high particle concentrations, operators need to ensure the impeller speed is sufficient to prevent clogging but not too high to avoid premature wear. Regular maintenance such as impeller inspections, bearing lubrication, and pump casing cleaning is important to extend service life.

Safe operation also requires placing the pump on stable surfaces, using leak-free suction pipes, and ensuring recommended lift conditions fit the field. Better maintenance leads to more optimal volute pump performance in the long run.

Volute Pump Efficiency for Small-Scale Dams

Water pumps based on volute designs prove efficient, resistant to abrasive materials, and capable of maintaining smooth construction processes for small dams. The use of the Crocodile NS-80 helps reduce time, costs, and operational risks in the field. For construction or irrigation project needs, select the right product and purchase from authorized dealers or visit the Karya Logistik website.
