Differences Between Hydraulic Marine Gearbox and Mechanical Gearbox

In a ship’s propulsion system, the gearbox plays a crucial role as the link between the main engine and the propeller. Its function is not only to transfer power but also to regulate speed, torque, and the direction of rotation, which directly affects the ship’s performance and maneuverability.

With advancing technology, two main types of gearboxes hydraulic and mechanical offer different characteristics. Understanding the differences between hydraulic marine gearboxes and mechanical gearboxes is essential to choose the system that best suits your ship’s needs.

Understanding Hydraulic Gearbox

• Definition and How It Works
  A hydraulic marine gearbox uses hydraulic fluid (oil) as the medium to transmit power. This system operates by moving pressurized fluid to activate the hydraulic clutch.

• Main Components and Advantages

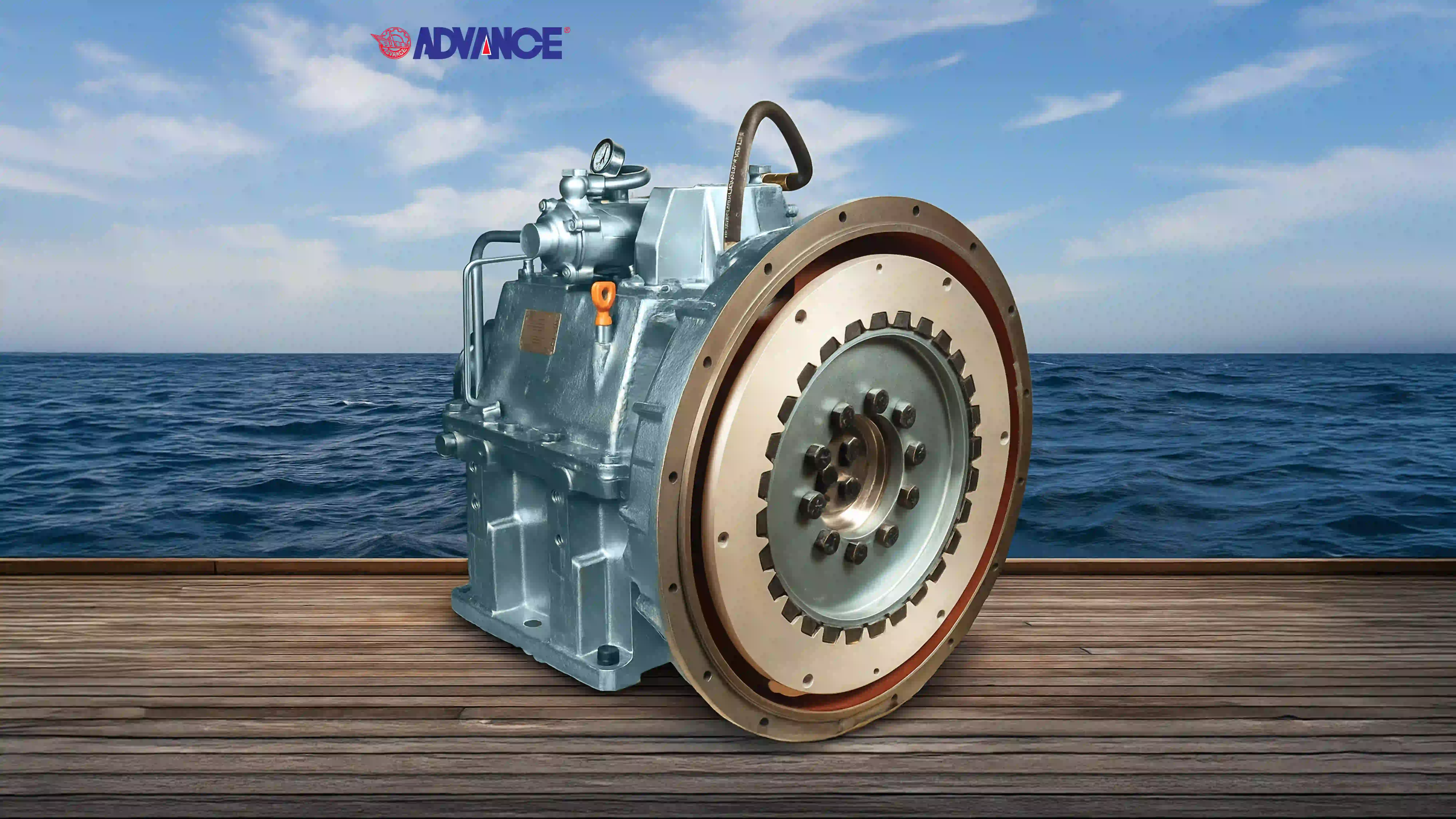

  The hydraulic gearbox consists of a hydraulic pump, control valves, and a clutch driven by fluid pressure. One example of a hydraulic clutch product is the Advance Gearbox Marine HCT Series, which features a multi-layered wet clutch structure. This design makes it very suitable for conditions where the clutch is frequently used under high speed and load.

Advantages of hydraulic gearboxes include exceptionally smooth and responsive gear shifting, ease of operation, and the ability to efficiently handle heavy loads.

Understanding Mechanical Gearbox

• Definition and Working Principle
  The mechanical gearbox uses a mechanical clutch that works based on friction. This clutch consists of discs that physically interact. When activated, these discs press against each other, generating friction that transmits power from the engine to the propeller.

• Structure and Limitations
  The mechanical gearbox consists of a series of gears, shafts, and clutches that physically interact to change the speed and rotation of the propeller. Its advantages include simpler construction and higher mechanical efficiency in power transmission.

However, its limitations include gear shifts that may feel rougher, a need for more careful periodic maintenance, and less flexibility in handling varying loads.

Technical Comparison Between the Two

• Operational System Differences
  Hydraulic gearboxes offer more automatic and smooth operation. Gear shifting can be controlled by electronic valves, making them ideal for modern ships that require precise control. Meanwhile, mechanical gearboxes rely more on direct gear interaction and often require more manual intervention.

• Efficiency and Performance
  Theoretically, mechanical gearboxes have slightly higher mechanical efficiency as there is no energy loss due to fluid transmission. However, hydraulic gearboxes excel in performance and responsiveness, especially in conditions with frequent changes in speed and load.

• Operational and Maintenance Costs
  Mechanical gearboxes generally have lower maintenance costs due to their simpler components. However, hydraulic gearboxes may incur slightly higher maintenance costs because of the fluid and hydraulic components requiring regular inspection.

Applications in the Maritime World

• When to Use Hydraulic Gearboxes?
  Hydraulic gearboxes are ideal for vessels that require frequent and quick maneuvering, such as tugboats, patrol boats, or yachts that benefit from smooth and responsive gear shifting.

• When Is a Mechanical Gearbox More Suitable?
  Mechanical gearboxes are better suited for small to medium vessels that do not need very smooth gear shifting and operate under moderate torque.

Conclusion

Understanding the differences between hydraulic marine gearboxes and mechanical gearboxes is key to ensuring the ship’s propulsion system operates optimally. The best choice depends on the type of vessel, operational patterns, and specific maneuvering needs. To obtain quality gearbox products like the Advance Marine Gearbox, contact your nearest dealer today.
