Main Components of a Dynamo Alternator and Their Explanations

A dynamo alternator is one of the important components in vehicles and generators that functions to produce electricity. Without an optimally working dynamo alternator, the power supply to the battery and various electronic devices will be disrupted.

What is a Dynamo Alternator and Its Function in Vehicles?

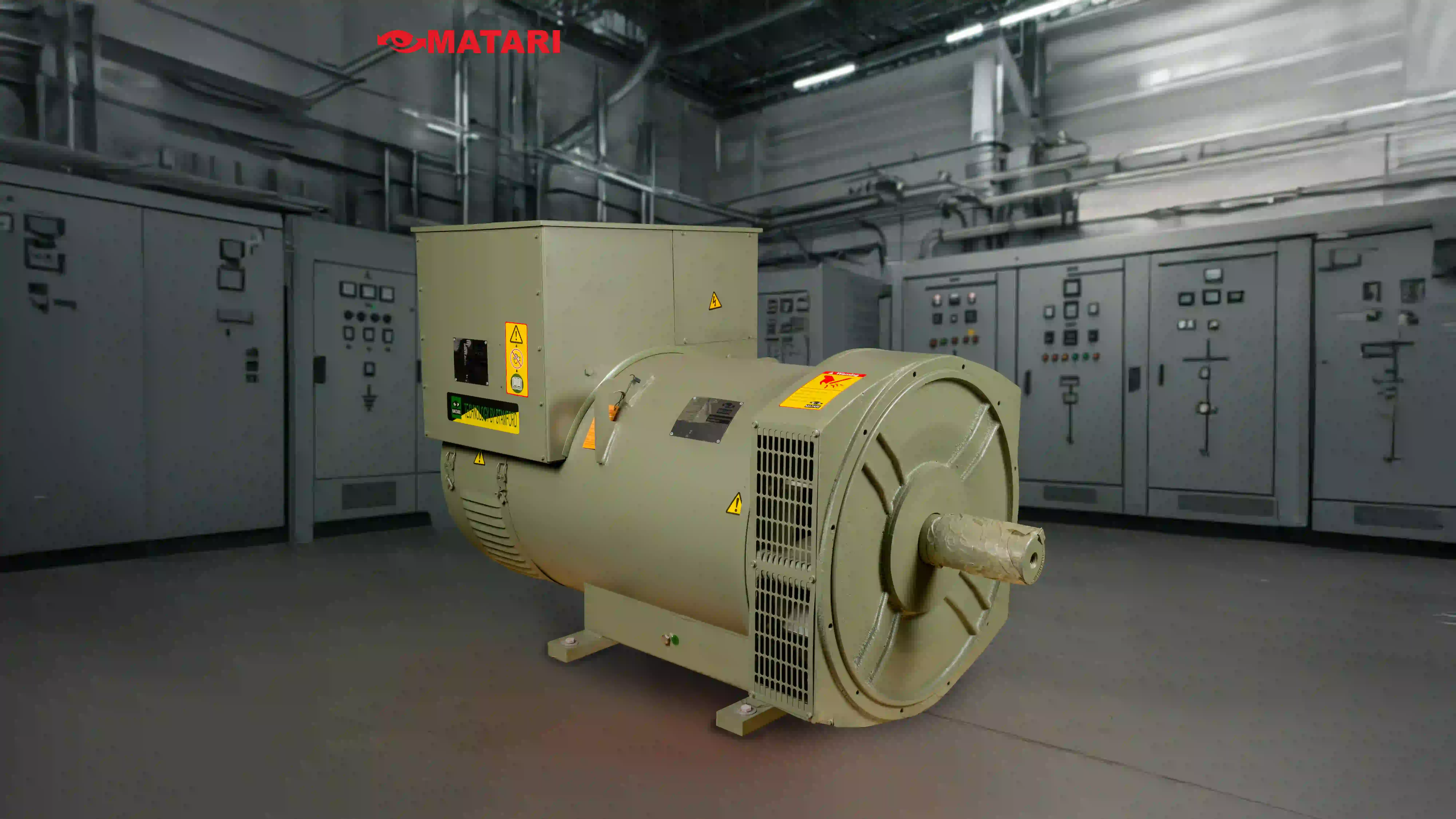

A dynamo alternator is an electromechanical device that converts mechanical energy into alternating current (AC) electrical energy, which is then rectified into direct current (DC). Its main function is to generate electricity for household, industrial needs, and to charge the vehicle’s battery while the engine is running. Products like the Matari UC3-314F 304KW 3 Phase Double Bearing Dynamo Alternator are reliable choices for high power requirements with stable performance.

Stator in a Dynamo Alternator: Definition and Types

• Definition and Function of the Stator
  The stator is the stationary part of the dynamo alternator, consisting of copper wire windings. When the rotor spins, its magnetic field cuts across the conductors on the stator, producing electrical current.

• Types of Stators and Their Materials
  The stator is made from laminated layers of metal, usually high-quality silicon steel, with wire coils wound around the stator core. These coils are generally made of copper, though some use aluminum.

Rotor in a Dynamo Alternator: Definition, Working Principle, and Maintenance

• Definition and Function of the Rotor
  The rotor is the rotating component that carries the magnetic field. As the rotor moves, its magnetic field cuts through the stator, inducing electricity. The interaction between rotor and stator is crucial for generating current in the dynamo alternator.

• Maintenance and Common Issues of the Rotor
  Common problems with the rotor include worn slip rings or broken rotor windings. Routine maintenance by checking the bearings and cleaning the slip rings greatly helps extend the rotor’s lifespan.

Diode Bridge (Rectifier) in a Dynamo Alternator

• Definition and Function of the Diode Bridge
  The diode bridge is a diode circuit in the dynamo alternator that converts the AC voltage from the stator into DC voltage to charge the battery. This process is called rectification.

• Signs of Diode Bridge Failure
  Symptoms of a damaged diode bridge include unstable charging voltage or a rapidly draining battery. If these signs occur, have your dynamo alternator inspected by a trusted workshop immediately.

Voltage Regulator in a Dynamo Alternator

• Function and Types of Voltage Regulators
  The voltage regulator controls the output voltage of the dynamo alternator to keep it stable at a certain level (for example, 13.8-14.4 volts). There are internal regulators integrated with the alternator and external separate regulators.

• Signs of Voltage Regulator Problems
  If the vehicle’s lights dim during idle or become too bright at high RPMs, it indicates a faulty regulator. Immediate inspection is advised to prevent further alternator damage.

Conclusion

By recognizing the main components of the dynamo alternator such as the stator, rotor, diode bridge, and voltage regulator you can better maintain and detect faults. For the best dynamo alternator needs, make sure to purchase from authorized dealers like Karya Logistik near your location to guarantee original products and professional after-sales service.
