What is a Marine Gearbox? Understanding Its Function, Working Principle, and Types in the Propulsion System

In the marine propulsion system, the ship gearbox plays a vital role as the link between the main engine and the propeller. Without the gearbox, power from the engine cannot be efficiently transmitted to the ship’s propulsion system. Therefore, understanding the function, working principle, and types of ship gearboxes is crucial, especially in the operation of medium to large vessels. One of the leading products widely used in the maritime industry is the Advance HCT800 Marine Gearbox, specially designed for medium to heavy duty requirements.

Definition and Main Components of a Marine Gearbox

A marine gearbox is a mechanical system that functions to regulate the speed and torque from the ship’s main engine before delivering it to the propeller. Essentially, the marine gearbox consists of several key components such as input-output gear wheels, clutch, housing (gearbox casing), lubrication system, and internal cooling.

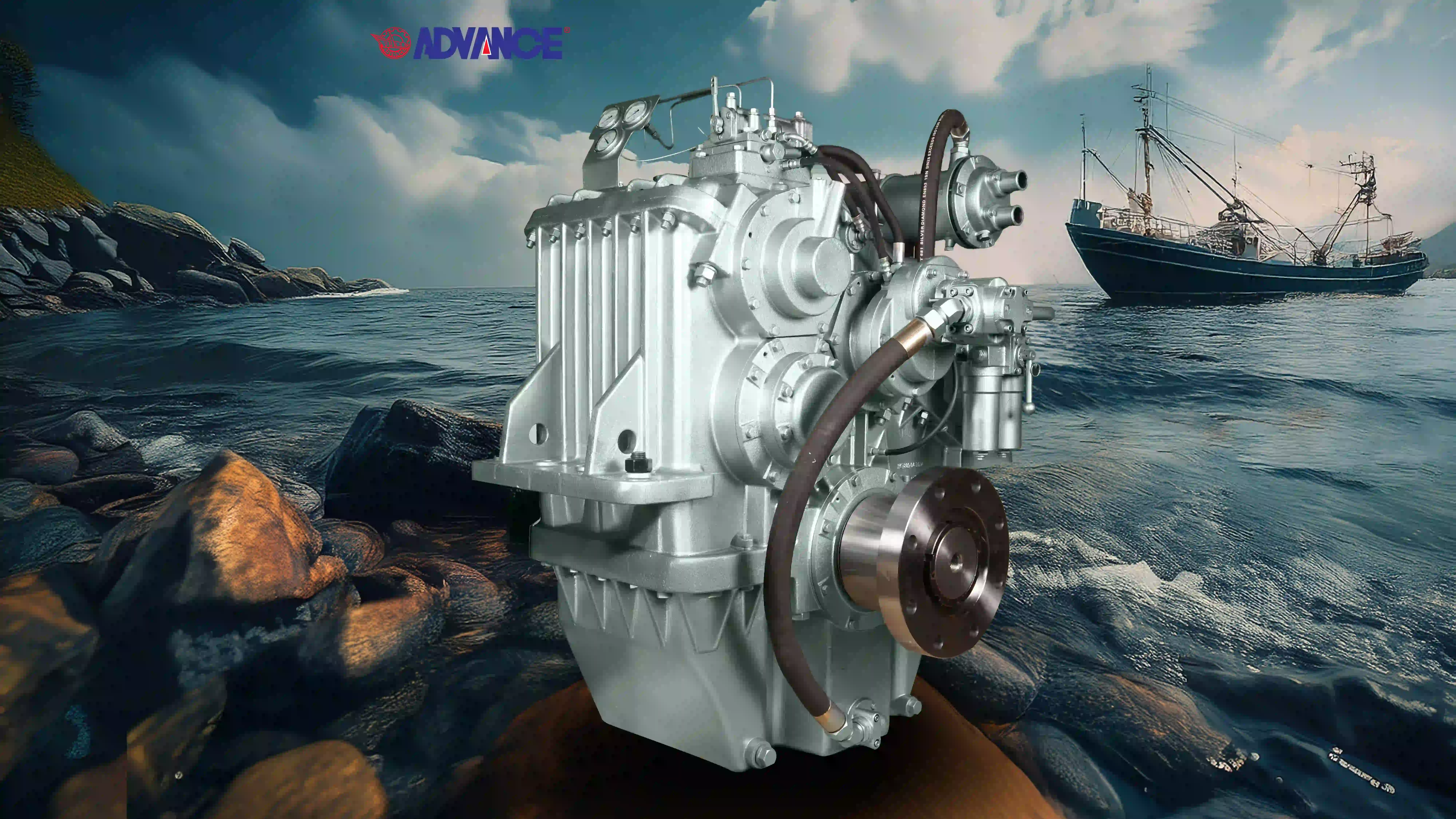

The Advance HCT800 Marine Gearbox is an example of a rugged gearbox constructed mainly from cast iron. This gearbox can handle engine power up to 1759 HP at 2100 rpm, with configurations including clutch housing or bell housing SAE 0,00, flanges SAE 16, 18, and 21, and a center distance of 450 mm. The unit weighs 2700 kg with dimensions of 105.6 x 128 x 142.5 cm, making it suitable for all medium and large types of vessels.

Function of Marine Gearboxes in the Propulsion System

The primary function of a marine gearbox is to regulate the engine’s speed and torque to match the propeller’s requirements. Marine diesel engines typically have high speed but low torque characteristics. Without gear reduction, the propeller cannot rotate at an optimal speed.

Additionally, the marine gearbox synchronizes the engine and propeller, resulting in efficient propulsion performance and fuel savings. The Advance HCT800 Marine Gearbox can also be operated remotely mechanically or electrically, providing additional operational flexibility for the vessel.

How a Marine Gearbox Works

The operation of a marine gearbox begins with power input from the marine diesel engine. This power is then transmitted through a gear system (gear set) that reduces speed and increases torque. The gearbox controls the direction and rotation speed of the propeller by turning the input and output gears according to a predetermined ratio.

In the Advance HCT800 gearbox, power reduction is performed based on a specific ratio between the input and output gears, ensuring precise and efficient power transmission.

Types of Marine Gearboxes

Generally, there are two main types of marine gearboxes:

1. Single Stage Gearbox
   This gearbox has one set of gears and is used for propulsion systems with a single main output. This type is available at KaryaLogistik. Single stage gearboxes work with reversible propeller rotation, meaning the output (propeller) rotation can be adjusted to both left and right.

2. Double Stage Gearbox
   Using two sets of gears, this gearbox type has one main output (propeller) and one additional output (seawater pump). This system can also be reversible, allowing the output rotation direction to be switched left or right.

The fundamental difference lies in the number of outputs and reversing capability. Double stage gearboxes are suitable for more complex applications, while single stage gearboxes such as the Advance HCT800 are more compact, robust, and efficient for single propulsion systems.

Gearbox Cooling and Lubrication System

Marine gearboxes operate under high pressure and temperature, requiring automatic lubrication systems and internal cooling to maintain operating temperatures. Without these systems, internal components can wear out quickly or fail due to overheating. The Advance HCT800 is equipped with a lubrication system that maintains stable performance over a long period.

Conclusion

The marine gearbox is a crucial component in the propulsion system, regulating engine torque and speed in line with the propeller’s operational needs. Products like the Advance HCT800 Marine Gearbox from KaryaLogistik provide a reliable solution for medium to large vessels with high efficiency and sturdy construction.

Want to learn more or purchase the product? Contact your nearest authorized Karya Logistik dealer to get the best product suited to your needs.
